Superjumbo Dry Cooler

Extremely Efficient Dry Cooler

The Superjumbo model features the best performance in the Refrion Dry Cooler series: it guarantees the highest efficiency per occupied area unit.

Cooling
capacity
158-2670 kW
*Standard conditions EN1048
Number
of fans
4 - 20
Fan diameter
800mm 910mm

Finned pack heat exchangers

With OVAL SECTION tubes:
12 mm nominal diameter; staggered pitch pattern and high-efficiency fins.
With ROUND SECTION tubes:
12 mm or with 5/8” nominal diameter, staggered pitch pattern and high-efficiency fins. Standard fin pitch: 2.1 mm.

Strain
Relief
System

Our exclusive system to stabilise the machine and avoid bending during all movements (lifting, transportation, installation) and over its entire life cycle.

Fans

  • AC THREE-PHASE OR SINGLE-PHASE: with thermal protection, lubricated for life, statically
    and dynamically balanced.
  • BRUSHLESS ENERGY-SAVING EC THREE-PHASE combines excellent performance with extremely low consumption and noise levels.

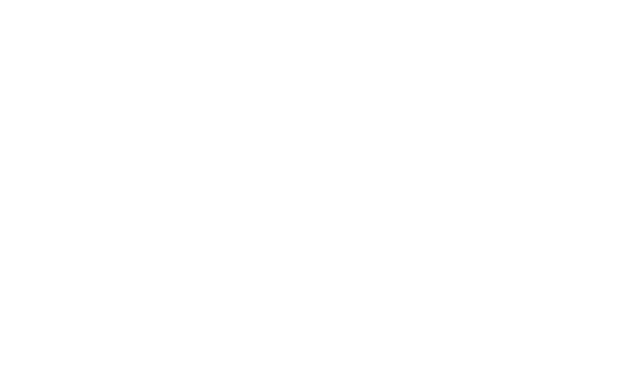

Dimension

refrion_superjumbo_dry_cooler_dimensioni

Applications

Refrigeration
Air
conditioning
Process
cooling
Data center
cooling
