Tower Dry Cooler
Dry Cooler for special architectural requirements
Refrion has designed the Tower Dry Cooler series which maintains the same level of performance, while limiting the overall height dimensions, thus achieving an installation with a low visual impact.
Cooling
capacity
capacity
41-1355 kW
*Standard conditions EN1048
Number
of fans
of fans
1 - 10
Fan diameter
800mm 910mm
Finned pack heat exchangers
With OVAL SECTION tubes:
12 mm nominal diameter; staggered pitch pattern and high-efficiency fins.
12 mm nominal diameter; staggered pitch pattern and high-efficiency fins.
With ROUND SECTION tubes:
12 mm or with 5/8” nominal diameter, staggered pitch pattern and high-efficiency fins. Standard fin pitch: 2.1 mm.
12 mm or with 5/8” nominal diameter, staggered pitch pattern and high-efficiency fins. Standard fin pitch: 2.1 mm.
Strain
Relief
System
Our exclusive system to stabilise the machine and avoid bending during all movements (lifting, transportation, installation) and over its entire life cycle.
Fans
- AC FANSETS
- EC (ELECTRONICALLY COMMUTATED) FAN MOTORS – AXITOP DIFFUSER
- EC (ELECTRONICALLY COMMUTATED) FAN MOTORS

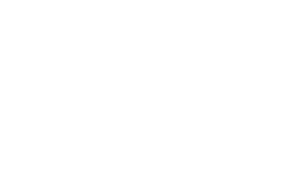

Dimension
Applications
Air
conditioning
conditioning
Process
cooling
cooling
